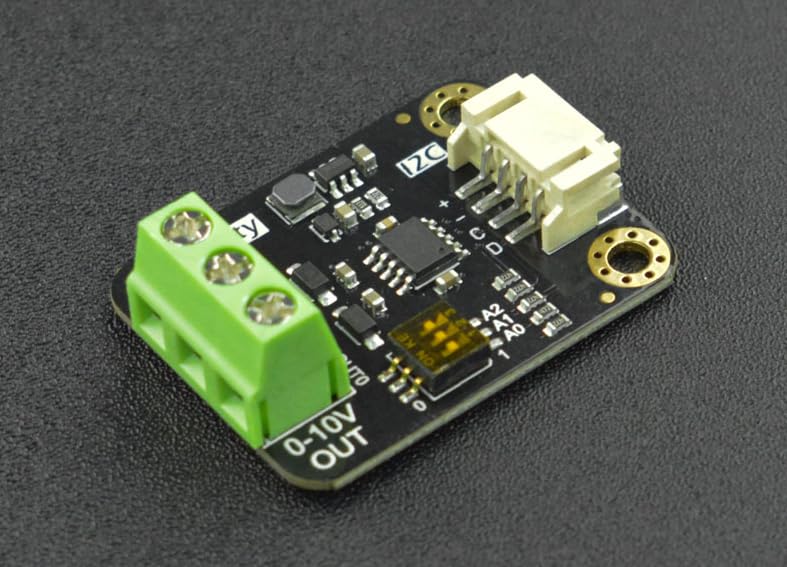

Gravity: 2-Channel I2C DAC Module (0-10V) - DFR0971
Product Overview
- Support 3.3V-5V power supply Output voltage error is less than 0.5% Output short-circuit protection Two-channel 0-5V/0-10V output for connecting to and controlling standard analog voltage devices Gravity interface, I2C communication, Arduino control, suitable for program automation control Adjustable 8-way I2C addresses, able to control 16 devices at the same time
- Intelligent function signal generator Automatic controlling of lighting or fountain Automatic and quick transformation of small equipment Automatic debugger for electromechanical equipment Transformation of small test equipment
- Operating Voltage: 3.3V~5V I2C Interface: PH2.0-4P (Gravity Line Sequence) Chip Type: GP8403 Input Signal: 12Bit (0x000 - 0xFFF) Input I2C Signal High Level: 2.7V - 5V VOUT0 Output Voltage: 0 - 10V VOUT1 Output Voltage: 0 - 10V Output Voltage Error: ＜ 0.5% Linearity Error of Output Voltage: 0.1% Power Consumption: ＜ 4mA Output Short-circuit Protection
